Sliding gate 4.5m VOGEL H.140 gray aluminum

SKU : KIT-000547

1749 € Last price found 1419 €

-19% Jusqu'au 02/12

Width: 449cm and Height: 145cm
Ideal for windy areas
Corrosion resistance
Accessories included

In stock - Delivery between 25/11 and 30/11
Free shipping

Promotional pack

Save money! Discover the packs associated with this product

Sliding gate 4.5m VOGEL H.140cm aluminum + gate VOGEL H140 GRAY 2778 € 1799 €

This pack contains:
Gray VOGEL sliding gate
Width 455cm and Height 140cm
Gray VOGEL gate
Width 100cm and Height 140cm

Delivery between 25/11 and 30/11

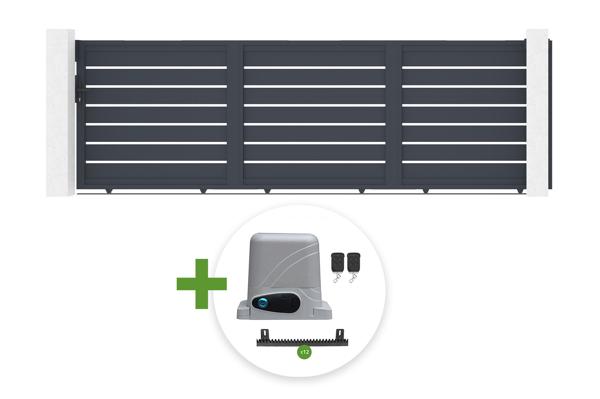

Sliding gate 4.5m VOGEL H.140cm aluminum + TANKER C600 motorization 3167 € 2079 €

This pack contains:
Gray VOGEL aluminum sliding gate
Width: 455cm and Height: 140cm
Premium rack motorization (600kg+)

Delivery between 25/11 and 30/11

Sliding gate 4.5m VOGEL H.140cm aluminum + 2 EIFEL posts 20x20cm H.166cm GRAY 3527 € 2449 €

This pack contains:
Gray VOGEL aluminum sliding gate
Width: 449cm and Height: 140cm
2 aluminum posts H.166cm gray

Delivery between 25/11 and 30/11

Technical data

Warranty

2 an(s)

Sleeper Section

70*30 mm

Blade width

Type of filling

openworked

Operating clearance

26 mm

RAL

7016

Pattern / Design

VOGEL

Amounts Section

78*47 mm

Length of the tail of the sliding gate

Exists by beating

Warranty

2 an(s)

Sleeper Section

70*30 mm

Blade width

Type of filling

openworked

Operating clearance

26 mm

RAL

7016

Pattern / Design

VOGEL

Amounts Section

78*47 mm

Length of the tail of the sliding gate

Exists by beating

Required pillar height

175 cm

Sleeper thickness

1.2 mm

Length of steel rail

9 m

Required discharge length

4.6 m

Recommended number of persons for assembly

Width

448.5 cm

Height

164.5 cm

Handle colour

Black

Width between pillars

424 cm

Stud thickness

1.5 mm

Color

Charcoal grey

Main material

Aluminium

Opening system

Sliding

Number of wheels

Supplied accessories

Yes

Compatible engines

Yes

Handle material

Aluminium

Thickness of the blades

1.2 mm

Compatible motorization type

Sliding

Locking system

Barrel lock

Guide system

Upper guide with 6 nylon olives

Type of lock

5 keys

Eligibility Extended warranty 5 years

Eligibility Extension of warranty 10 years

Assembly instructions

Yes

Finishing

Sand mat

Assembly time

8 h

Rod assembly

Self-drilling screws

Frame material

Aluminium

Stud/rail assembly

Self-drilling screws

Opening direction

left to right / right to left

Description

Width: 449cm and Height: 145cm
Ideal for windy areas
Corrosion resistance
Accessories included

Discover our VOGEL openwork aluminium sliding gate, the perfect combination of aesthetics and security for your entrance.

Thanks to its length of 4.5 metres, it is ideal for large entrances, guaranteeing easy access and secure parking for your vehicles.

Its timeless elegance fits perfectly into any environment, creating a memorable first impression.

Its spaced slats allow you to gain visibility and let natural light through to illuminate your entrance, while protecting you from prying eyes.

Ideal for areas exposed to wind, its openwork structure allows air to circulate freely, thus reducing wind resistance and minimising the constraints imposed by bad weather.

Opting for an XL openwork sliding gate means choosing security, style and durability, while preserving the visual harmony of your outdoor space.

The VOGEL sliding gate with its contemporary design is ideal for areas exposed to wind.

Description: Large openwork sliding gate, 1 leaf
Material: Aluminum
Color: Anthracite gray RAL 7016
Dimensions: Width 449 cm x Height 145 cm
Total width required with clearance: 898 cm
Minimum height of pillars: 160 cm
Inspired and designed in France

This gate kit to assemble and install by yourself contains:
- 21 thermo-lacquered aluminum slats (Width 15.5 cm)
- 1 upper guide composed of 6 nylon rollers
- 8.48m steel guide rail
- 6 steel rollers
- 1 reception strike plate
- 1 reception stop
- 1 barrel lock
- 1 Handle (Black color)
- 5 keys
- Finishing covers
- Screws

If you wish to motorize your sliding gate, promotional packs are available under this product sheet.
The posts are not included in our kits because they are not essential for the installation of your sliding gate in the event that your exterior already has pillars/posts.

To ensure a safe and stable installation of the sliding gate, the posts must have a minimum height of 160 cm and a width of at least 20 cm.

If your installation requires pillars, we offer promotional packs including the XL sliding gate of your choice, accompanied by two aluminum posts adapted to the chosen entrance gate.

The VOGEL XL model is also available in other dimensions.

Gate delivered in kit form.
Clear instructions, simple and quick assembly.
Find all the necessary information for this product in the Technical characteristics

It is technically possible to mount your gate with an opening from right to left. Our sliding gate assembly instructions have been designed to offer you two different installation options depending on the opening direction chosen: from left to right or from right to left (finishing strip on the outside).
For any further information, please contact our customer service via our contact form.
